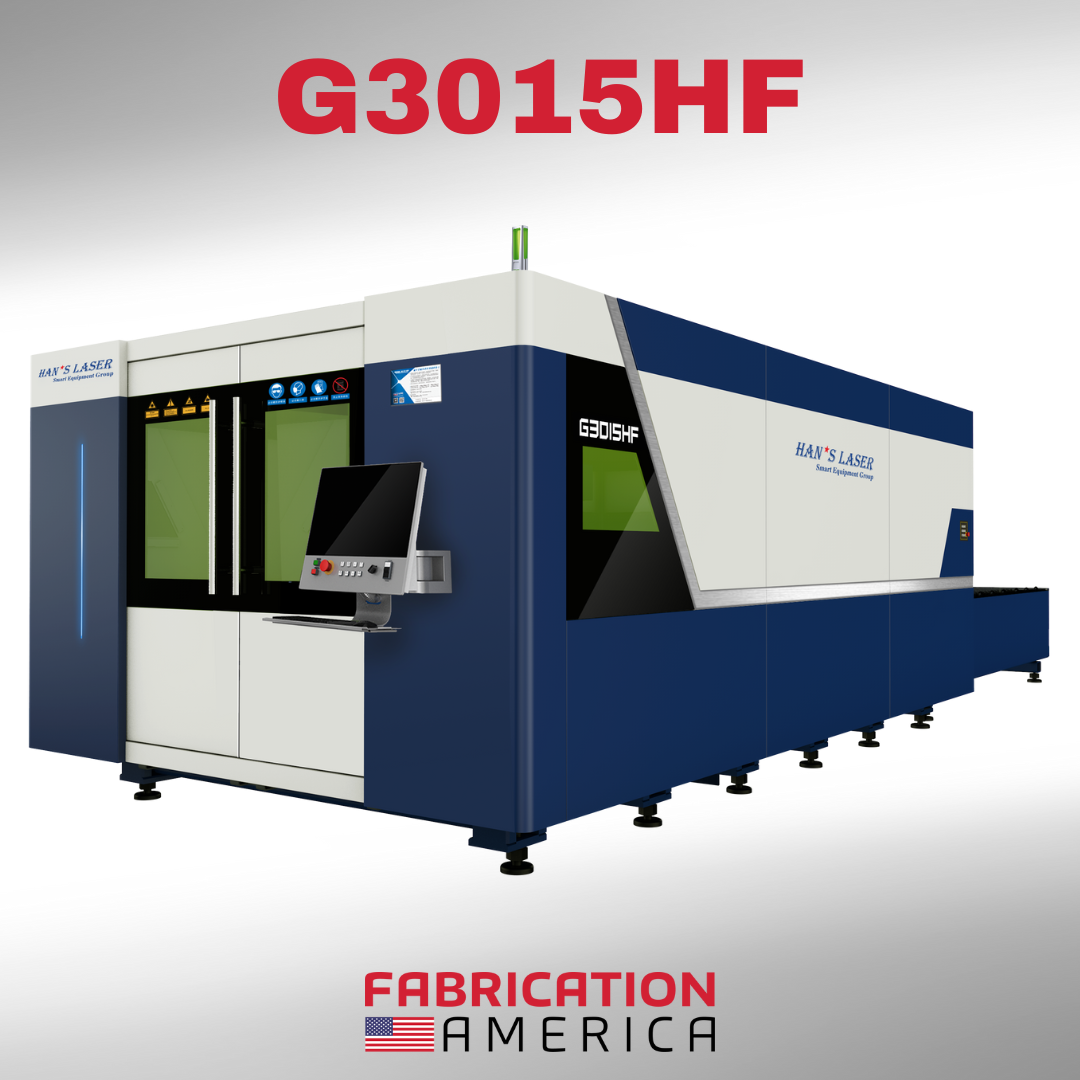

Han's Laser G3015HF Fiber Laser IPG

Han's Laser G3015HF Fiber Laser IPG

Regular price $470,000.00
Regular price Sale price $470,000.00
Sale Sold out
Power
View full details

Introducing The G3015HF

  • The HF series is a high-speed fiber laser cutting machine built by Han's Laser.
  • The HF series is equipped with three key components: a CNC system, a laser source, and a cutting head. All of these components are made by leading industry brands.
  • The HF series focuses on 10,000 watt laser cutting and can handle thick plates with ease. It can even meet the demanding requirements of 30,000 watt ultra-high power cutting. With a wealth of knowledge about 10,000 watt cutting, the HF series offers a range of unique processes, such as zero second perforation, stable cutting of thick plates, low air pressure cutting, and clean cutting.

MORE ABOUT THE MACHINE

Highlights

Are you in need of a cutting-edge solution for your metal material processing needs? Look no further than the G3015HF fiber laser cutting machine! This machine, developed in China, has reached the international leading level in performance used by many Fortune 500 companies. With its ultra-high speed flying cutting capabilities and impressive dynamic performance, the G3015HF is the top choice for the high-end model of the metal material processing industry. The machine can cut 0.5mm stainless steel at speeds of up to 120m/min, providing users with maximum efficiency and superior value. You'll be impressed with this cutting-edge technology.

Fiber lasers have revolutionized the world of laser cutting, making it a top choice for advanced manufacturing in many industries. IPG fiber lasers offer a reliable and cost-effective solution, resulting in increased adoption among metal manufacturers.

The benefits of fiber laser cutting are numerous and include high-precision, high-speed cutting, non-contact cutting which does not degrade cut quality, minimal maintenance for high tool availability, and the ability to cut a wide variety of materials. The scalability of the process allows for cutting of micro materials such as stents, as well as shaping structural steel. Additionally, fiber laser cutting is easily automated for maximum productivity.

Specs

HANS LASER G3015HF FIBER LASER
3, 4, 6, 8, 10, 12, and 15 kW IPG

5' X 10' SHEET (3015 MM X 1500 MM)
IPG FIBER RESONATOR WITH WATER CHILLER
HAN'S LASER AUTO-FOCUS CUTTING HEAD
656'/MINUTE MAXIMUM AXIS SPEED
2.8 G FORCE
1,980 LB WEIGHT CAPACITY (900 KG)
120" X AXIS (3050 MM)
60" Y AXIS (1525 MM)
4.72" Z AXIS (120 MM)
+/- 0.0012 X AND Y AXIS POSITION ACCURACY
+/- 0.0008 X AND Y AXIS REPEATABILITY
AIR COMPRESSOR
TWIN PALLET SYSTEM
BOSCH REXROTH GUIDES
HANS 901 DIGITAL CONTROL - 17" TOUCHSCREEN
METALIX CNC KAD PROGRAMMING AND NESTING SOFTWARE
- 1 SEAT
CLASS 1 FDA CERTIFIED
2 YEAR WARRANTY - PARTS & LABOR

STANDARD FEATURES
- BOSCH REXROTH INDRAMAT DRIVE AND SERVO SYSTEM
- ATLANTA RACK-PINION HELICAL GEAR
- VIDEO MONITOR
- 1 CAMERA INSIDE THE MACHINE ENCLOSURE
- 1 CAMERA OVERLOOKING THE PALLET SYSTEM
ALLOWS REMOTE VIEWING VIA TEAMVIEWER SOFTWARE
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- AIR COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 4 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTOMATIC 10 NOZZLE CHANGER
- CLEAN BOX (8 KW AND UP)
- AUTO LOAD-UNLOAD SYSTEMS - OVER/UNDER CARTS
GANTRY SYSTEM
10-SHELF TOWER
- WORK LIFTERS UNDER PALLET
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX DRAG AND CUT SOFTWARE MODULE
- METALIX SOFTWARE TRAINING
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER

Warranty

Every machine and resonator is covered by a Two (2) Year Limited Warranty provided by Han's Laser that will begin after the acceptance has been signed.

The IPG resonator can be serviced nationwide through the regional IPG service network of laser technicians. Machine components, excluding consumables, are covered for two years for failures due to normal usage. During the warranty period, Han's laser's qualified after-sale service engineer will provide chat, telephone, or on-site service at any time for any mechanical problems with the machine tool. Han's laser will provide free replacement parts for damages due to the quality of the equipment, but this does not include consumable parts (such as fibers, optical lenses, cutting nozzles, etc.) or damages caused by the client's incorrect operation of the equipment.

We also sell 1, 2, and 3 Year Extended Warranty packages. Han’s and (for machines up to 6kW) IPG power source. These packages include 2 Preventive Maintenance visits per year and covers mechanical parts and IPG resonator (consumables are not included in Warranty Plans)
1 year $43,200 or $3,600/mo
2 year $39,880/yr or $3,323/mo
3 year $35,868/yr or $2,989/mo

FAQ

Q: I'm new to this machine and don't know which one to choose. Can you help me?

A: Yes, of course. Just tell us what you want to use the laser machine for and we will provide you with professional solutions and suggestions.

Q: Can the machine be customized to meet my specific requirements?

A: Yes, we have a highly skilled technical team with a wealth of experience. Our goal is to ensure your satisfaction.

Q: What is your after-sales service like?

A: We offer 24/7 online video support to help resolve any issues you may have. We can also provide on-site service anywhere in the world.

Q: I received the machine but don't know how to use it. What can I do?

A: We will include a video and an English manual with the machine. If you still have questions, we are available by phone, Skype, and email to assist you.

Q: If there are problems with the machine during the warranty period, what should I do?

A: If you experience any issues with the machine during the warranty period, we will provide replacement parts at no cost to you. We also offer lifetime after-sales support, so don't hesitate to reach out to us with any questions or concerns.

CUTTING SAMPLES

WHY HAN'S LASER?

Han's Laser is a well-known brand in the industrial laser industry. Founded in 1996, the company has grown to become one of the largest providers of laser solutions in the world. Han's Laser offers a wide range of products and services, including high-speed fiber laser cutting machines, CNC systems, laser sources, and cutting heads. With its focus on innovation and customer satisfaction, Han's Laser has earned a reputation for providing reliable and effective solutions to meet the needs of its customers.

HOW THE ORDER PROCESS WORKS

  • 1. YOU ORDER

    Effortless ordering process - just a few clicks and we'll start immediately.

  • 2. WE SHIP

    Quick and reliable shipping - your order will be on its way in no time!

  • 3. WE INSTALL

    Quick and easy installation with personalized training to ensure seamless integration.

  • 4. YOU PROFIT

    Great profitability and tax savings with our high-performance machines

Have Questions?

If you have any questions, don't hesitate to reach out to us. We'd love for you to join the Fabrication America family and experience the benefits of our products and services firsthand. We are dedicated to providing top-notch customer support and ensuring your complete satisfaction. Let us help you take your business to the next level.
