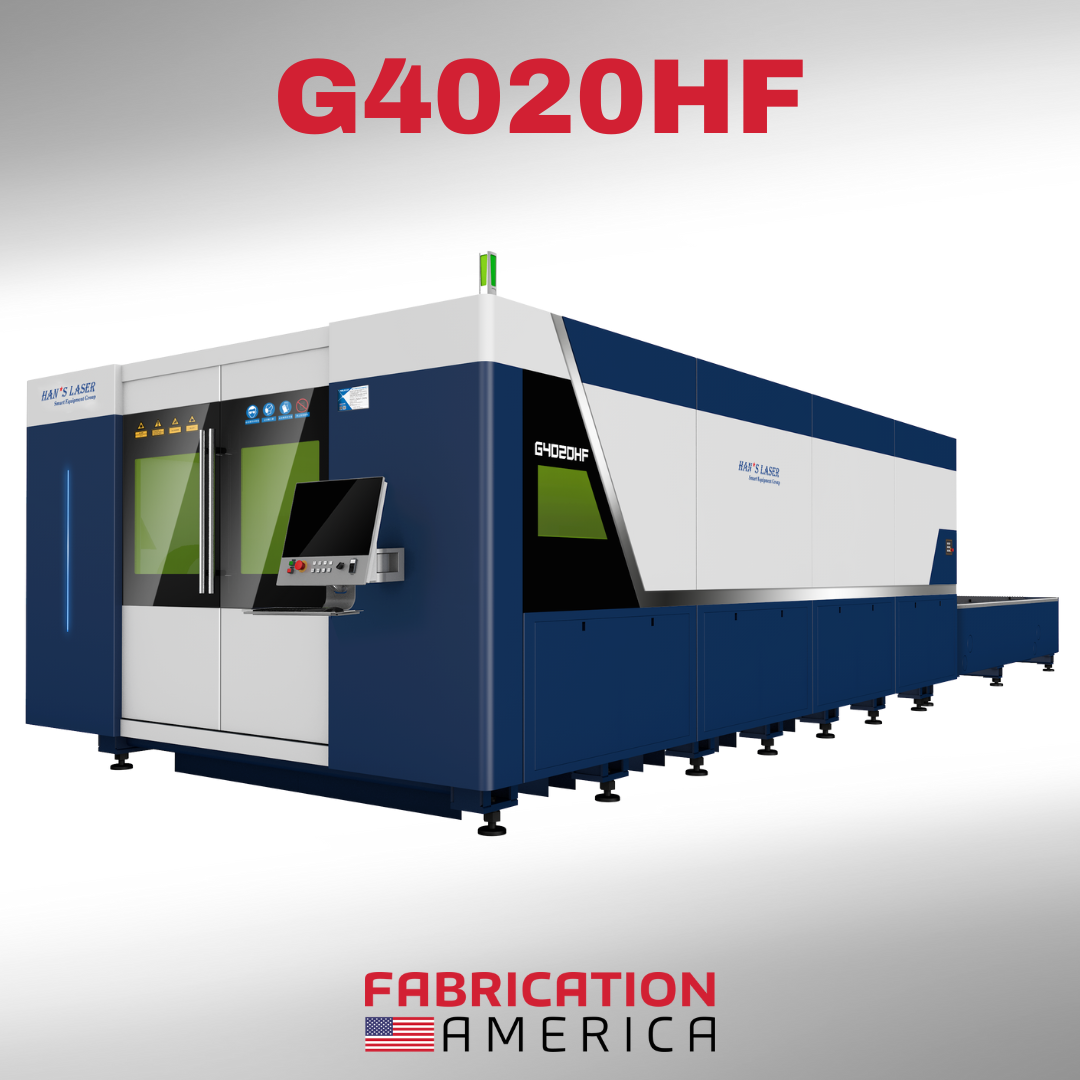

Han's Laser G4020HF Fiber Laser IPG

Han's Laser G4020HF Fiber Laser IPG

Regular price $500,000.00
Regular price Sale price $500,000.00
Sale Sold out
Power

Category: Lasers
Subcategory: Flat Lasers
Manufacturer: Hans Laser Model: 4020HF
Condition: New
Dimensions: 466" x 137" x 92"
Weight: 30,865 lbs

Introducing the Hans Laser 4020HF Fiber Laser Cutting Machine with 8 kW IPG:

Key Specifications:

  • Cutting Area: 13' x 6'6"
  • IPG Fiber Resonator: 8 kW with water chiller
  • Cutting Head: Han's Laser auto-focus
  • Axis Dimensions: X (158.66" / 4030 mm), Y (79.52" / 2020 mm), Z (4.72" / 120 mm)
  • Position Accuracy: +/- 0.0012 in X and Y axes (0.03 mm)
  • Repeatability: +/- 0.0008 in X and Y axes (0.02 mm)
  • Max Positioning Speed: 656 ft/min (200 m) in X & Y axes
  • Maximum Acceleration: 2.8 G in X and Y axes
  • Weight Capacity: 3,527 lbs (1600 kg)
  • Tables: Twin Pallets
  • Drive System: Bosch Rexroth
  • Rack-Pinion: Atlanta Helical
  • Guides: Bosch Rexroth
  • Control: Hans 901 Digital with 17" touchscreen
  • Software: CNC KAD programming and nesting (1 seat)
  • Video Monitoring: 1 camera inside enclosure, 1 camera overlooking pallet system (remote monitoring & diagnostics)
  • Auto Lubrication System
  • Stress-relieved, unitary machined frames
  • Certification: Class 1 FDA
  • Warranty: 2 years (parts & labor)

Optional Add-Ons (Pricing Upon Request):

  • IPG Fiber Resonators: 3, 4, 6, 12, and 15 kW
  • Air Compressor System Upgrade
  • Donaldson Dust Collector with 4 filters
  • Gas Mixer for Aluminum Cutting
  • Automatic 10 Nozzle Changer
  • Clean Box (for 8 kW and up)
  • Auto Load-Unload Systems: Over/Under Carts, Gantry System, 10-Shelf Tower
  • Work Lifters under Pallet
  • Additional Metalix Software Seat
  • Metalix Drag and Cut Software Module
  • Metalix Software Training
  • UL Listing Certificate for Automation
  • UL Listing Certificate for Laser
