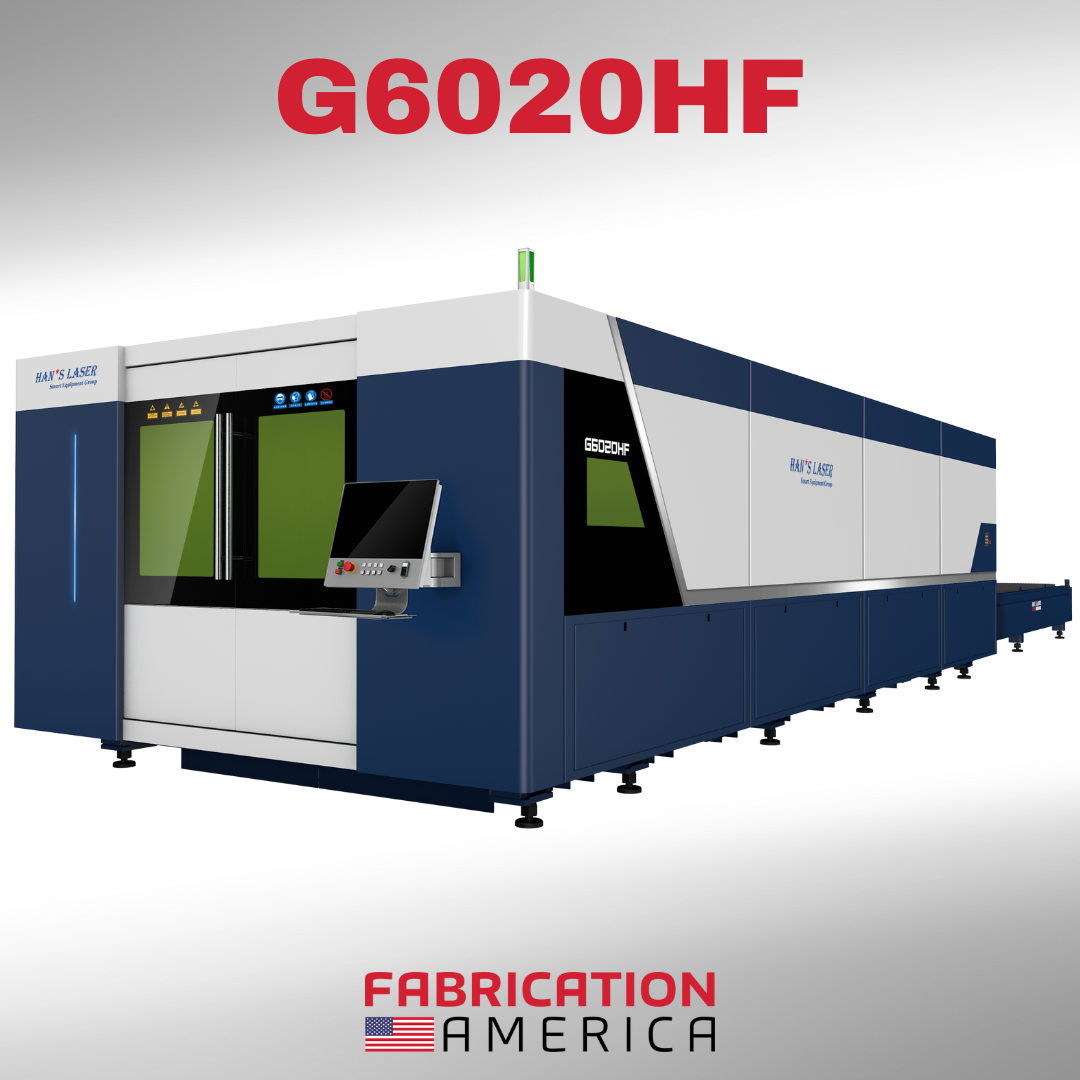

Introducing The G6020HF
- The HF series is a high-speed fiber laser cutting machine built by Han's Laser.
- The HF series is equipped with three key components: a CNC system, a laser source, and a cutting head. All of these components are made by leading industry brands.
- The HF series focuses on 10,000 watt laser cutting and can handle thick plates with ease. It can even meet the demanding requirements of 30,000 watt ultra-high power cutting. With a wealth of knowledge about 10,000 watt cutting, the HF series offers a range of unique processes, such as zero second perforation, stable cutting of thick plates, low air pressure cutting, and clean cutting.
MORE ABOUT THE MACHINE
Highlights
Are you in need of a cutting-edge solution for your metal material processing needs? Look no further than the G6020HF fiber laser cutting machine! This machine, developed in China, has reached the international leading level in performance used by many Fortune 500 companies. With its ultra-high speed flying cutting capabilities and impressive dynamic performance, the G6020HF is the top choice for the high-end model of the metal material processing industry. The G6020HF is equipped with a range of technologies that enhance its performance and reduce operating costs, such as fly cutting for high-speed mass production, zero-second perforation for increased productivity, and jump cutting for versatility and cost savings. It is also capable of stainless steel compressed air cutting, which allows for faster, cleaner cuts without the need for assist gas.
This 8th generation machine has laser power ranging from 3kw to 15kw and features a fully sealed continuous beam path that ensures consistent nozzle beam centering and optimal precision with little to no maintenance required. It is capable of cutting through a wide range of materials, including stainless steel, mild steel, brass, aluminum, and copper, with a maximum cutting speed of 120 m/min and a sheet metal thickness range of 0.5 mm to unlimited length and up to 5m wide.
Fiber lasers have revolutionized the world of laser cutting, making it a top choice for advanced manufacturing in many industries. IPG fiber lasers offer a reliable and cost-effective solution, resulting in increased adoption among metal manufacturers.
The benefits of fiber laser cutting are numerous and include high-precision, high-speed cutting, non-contact cutting which does not degrade cut quality, minimal maintenance for high tool availability, and the ability to cut a wide variety of materials. The scalability of the process allows for cutting of micro materials such as stents, as well as shaping structural steel. Additionally, fiber laser cutting is easily automated for maximum productivity.
Fiber lasers have revolutionized the world of laser cutting, making it a top choice for advanced manufacturing in many industries. IPG fiber lasers offer a reliable and cost-effective solution, resulting in increased adoption among metal manufacturers.
The benefits of fiber laser cutting are numerous and include high-precision, high-speed cutting, non-contact cutting which does not degrade cut quality, minimal maintenance for high tool availability, and the ability to cut a wide variety of materials. The scalability of the process allows for cutting of micro materials such as stents, as well as shaping structural steel. Additionally, fiber laser cutting is easily automated for maximum productivity.
Specs
HANS LASER G4020HF FIBER LASER
3, 4, 6, 8, 10, 12, and 15 kW IPG
13' X 6' 6" SHEET
8 KW IPG FIBER RESONATOR WITH WATER CHILLER
158.66" X AXIS (4030 MM)
79.52" Y AXIS (2020 MM)
4.72" Z AXIS (120 MM)
+/- 0.0012 X AND Y AXIS POSITION ACCURACY (.03 MM)
+/- 0.0008 X AND Y AXIS REPEATABILITY (0.02 MM)
656 FPM MAX X & Y AXIS POSITIONING SPEED (200 M)
2.8 G X AND Y AXIS MAXIMUM ACCELERATION
3,527 LB WEIGHT CAPACITY (1600 KG)
TABLES - TWIN PALLETS
BOSCH REXROTH DRIVE SYSTEM
ATLANTA HELICAL RACK-PINION
BOSCH REXROTH GUIDES
HANS 901 DIGITAL CONTROL
17 INCH TOUCHSCREEN
CNC KAD PROGRAMMING AND NESTING SOFTWARE W/1 SEAT
HAN'S LASER AUTO-FOCUS CUTTING HEAD
VIDEO MONITORING
1 CAMERA INSIDE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
CAN BE USED FOR REMOTE MONITORING & DIAGNOSTICS
AUTO LUBRICATION SYSTEM
STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT
CLASS 1 FDA CERTIFIED
2 YEAR WARRANTY - PARTS & LABOR
OPTIONS AVAILABLE - PRICE ON REQUEST
3, 4, 6, 12 AND 15 KW IPG FIBER RESONATORS
- AIR COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 4 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTOMATIC 10 NOZZLE CHANGER
- CLEAN BOX (8 KW AND UP)
- AUTO LOAD-UNLOAD SYSTEMS - OVER/UNDER CARTS
GANTRY SYSTEM
10-SHELF TOWER
- WORK LIFTERS UNDER PALLET
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX DRAG AND CUT SOFTWARE MODULE
- METALIX SOFTWARE TRAINING
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
Warranty
Every machine and resonator is covered by a Two (2) Year Limited Warranty provided by Han's Laser that will begin after the acceptance has been signed.
The IPG resonator can be serviced nationwide through the regional IPG service network of laser technicians. Machine components, excluding consumables, are covered for two years for failures due to normal usage. During the warranty period, Han's laser's qualified after-sale service engineer will provide chat, telephone, or on-site service at any time for any mechanical problems with the machine tool. Han's laser will provide free replacement parts for damages due to the quality of the equipment, but this does not include consumable parts (such as fibers, optical lenses, cutting nozzles, etc.) or damages caused by the client's incorrect operation of the equipment.
We also sell 1, 2, and 3 Year Extended Warranty packages. Han’s and (for machines up to 6kW) IPG power source. These packages include 2 Preventive Maintenance visits per year and covers mechanical parts and IPG resonator (consumables are not included in Warranty Plans)
1 year $43,200 or $3,600/mo
2 year $39,880/yr or $3,323/mo
3 year $35,868/yr or $2,989/mo
FAQ
Q: I'm new to this machine and don't know which one to choose. Can you help me?
A: Yes, of course. Just tell us what you want to use the laser machine for and we will provide you with professional solutions and suggestions.
Q: Can the machine be customized to meet my specific requirements?
A: Yes, we have a highly skilled technical team with a wealth of experience. Our goal is to ensure your satisfaction.
Q: What is your after-sales service like?
A: We offer 24/7 online video support to help resolve any issues you may have. We can also provide on-site service anywhere in the world.
Q: I received the machine but don't know how to use it. What can I do?
A: We will include a video and an English manual with the machine. If you still have questions, we are available by phone, Skype, and email to assist you.
Q: If there are problems with the machine during the warranty period, what should I do?
A: If you experience any issues with the machine during the warranty period, we will provide replacement parts at no cost to you. We also offer lifetime after-sales support, so don't hesitate to reach out to us with any questions or concerns.
CUTTING SAMPLES
